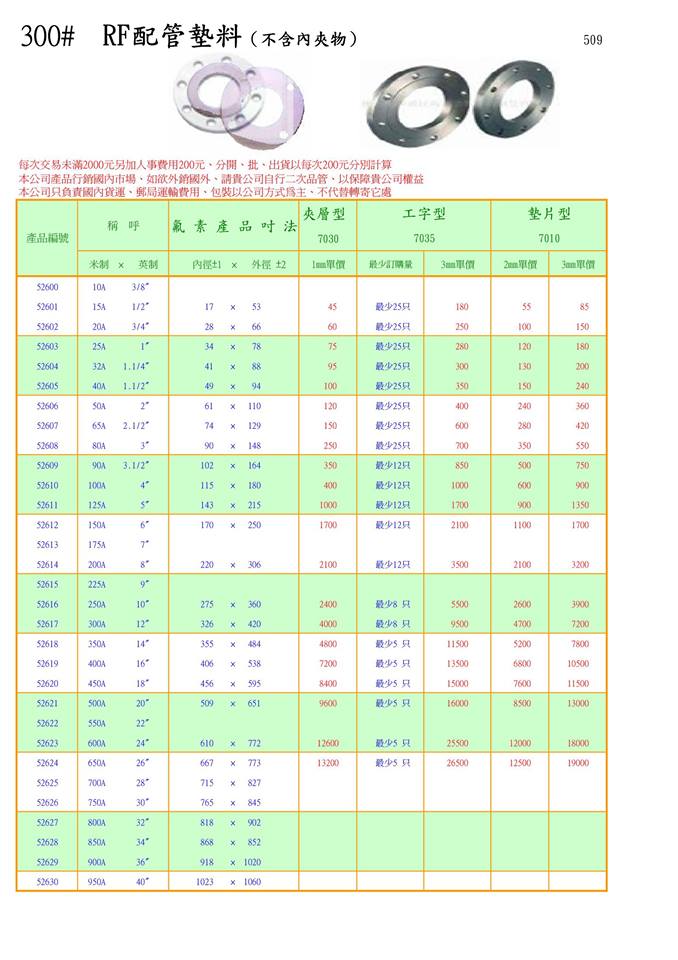

法蘭密封元件 > 300#-RF配管墊料

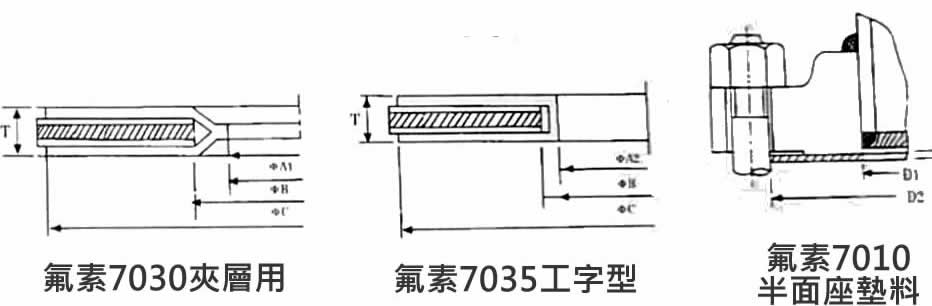

| 產品編號 | 稱呼 | 氟 素 產品 吋法 | 夾層型 | 工字型 | 墊片型 | |||||||
| 7030 | 7035 | 7010 | ||||||||||
| 米制 | 英制 | 內徑±1 | × | 外徑±2 | 1㎜單價 | 最少訂購量 | 3㎜單價 | 2㎜單價 | 3㎜單價 | |||
| 52600 | 10A | 3/8〞 | × | |||||||||
| 52601 | 15A | 1/2〞 | 17 | × | 53 | 45 | 最少25只 | 180 | 55 | 85 | ||
| 52602 | 20A | 3/4〞 | 28 | × | 66 | 60 | 最少25只 | 250 | 100 | 150 | ||
| 52603 | 25A | 1〞 | 34 | × | 78 | 75 | 最少25只 | 280 | 120 | 180 | ||
| 52604 | 32A | 1.1/4〞 | 41 | × | 88 | 95 | 最少25只 | 300 | 130 | 200 | ||
| 52605 | 40A | 1.1/2〞 | 49 | × | 94 | 100 | 最少25只 | 350 | 150 | 240 | ||
| 52606 | 50A | 2〞 | 61 | × | 110 | 120 | 最少25只 | 400 | 240 | 360 | ||
| 52607 | 65A | 2.1/2〞 | 74 | × | 129 | 150 | 最少25只 | 600 | 280 | 420 | ||
| 52608 | 80A | 3〞 | 90 | × | 148 | 250 | 最少25只 | 700 | 350 | 550 | ||
| 52609 | 90A | 3.1/2〞 | 102 | × | 164 | 350 | 最少12只 | 850 | 500 | 750 | ||
| 52610 | 100A | 4〞 | 115 | × | 180 | 400 | 最少12只 | 1000 | 600 | 900 | ||
| 52611 | 125A | 5〞 | 143 | × | 215 | 1000 | 最少12只 | 1700 | 900 | 1350 | ||
| 52612 | 150A | 6〞 | 170 | × | 250 | 1700 | 最少12只 | 2100 | 1100 | 1700 | ||
| 52613 | 175A | 7〞 | × | |||||||||
| 52614 | 200A | 8〞 | 220 | × | 306 | 2100 | 最少12只 | 3500 | 2100 | 3200 | ||
| 52615 | 225A | 9〞 | × | |||||||||
| 52616 | 250A | 10〞 | 275 | × | 360 | 2400 | 最少8只 | 5500 | 2600 | 3900 | ||
| 52617 | 300A | 12〞 | 326 | × | 420 | 4000 | 最少8只 | 9500 | 4700 | 7200 | ||
| 52618 | 350A | 14〞 | 355 | × | 484 | 4800 | 最少5只 | 11500 | 5200 | 7800 | ||
| 52619 | 400A | 16〞 | 406 | × | 538 | 7200 | 最少5只 | 13500 | 6800 | 10500 | ||
| 52620 | 450A | 18〞 | 456 | × | 595 | 8400 | 最少5只 | 15000 | 7600 | 11500 | ||
| 52621 | 500A | 20〞 | 509 | × | 651 | 9600 | 最少5只 | 16000 | 8500 | 13000 | ||
| 52622 | 550A | 22〞 | × | |||||||||
| 52623 | 600A | 24〞 | 610 | × | 772 | 12600 | 最少5只 | 25500 | 12000 | 18000 | ||
| 52624 | 650A | 26〞 | 667 | × | 773 | 13200 | 最少5只 | 26500 | 12500 | 19000 | ||
| 52625 | 700A | 28〞 | 715 | × | 827 | |||||||
| 52626 | 750A | 30〞 | 765 | × | 845 | |||||||
| 52627 | 800A | 32〞 | 818 | × | 902 | |||||||
| 52628 | 850A | 34〞 | 868 | × | 852 | |||||||
| 52629 | 900A | 36〞 | 918 | × | 1020 | |||||||
| 52630 | 950A | 40〞 | 1023 | × | 1060 | |||||||
